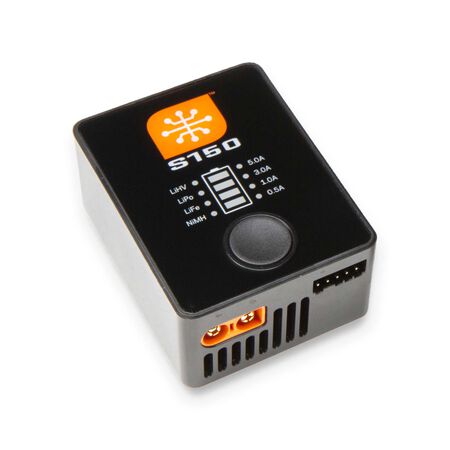

SPMXC1070 – S150 Smart Charger AC/DC

Specifications

Amp Meter:  No
Application:  Battery Charger for Electric Powered RC Vehicles and Aircraft
Battery Balance Connector:  JST-XH
Battery Temperature Monitoring:  No
Battery Type:  LiPo (3.7V per cell)
Connector Type:  IC3
Cooling Method:  Fan
Discharge:  Yes
Input Voltage:  100-240V AC
Integrated Balancing:  Yes – Internal Balancer & Internal Adapter
Low Input Voltage Protection:  Yes
Maximum Charge Rate:  17.4V, 5A, 50W
Normal/Standard Charge Current:  1.0 – 5.0A
Number of Cells:  2-4S LiPo, LiFe LiHV, LiFe, 2-12 cell NiMH
Output:  5A
Output Connector:  IC3 (compatible with EC3)
Over Current Protection:  Yes
Peak Detection: Yes
Product Height:  1.12″ (28.5mm)
Product Length:  2.5″ (65mm)
Product Weight:  2.2oz (63g)
Product Width:  1.9″ (49mm)
Programmable:  No
Reverse Polarity Protection:  Yes
Safety Timer:  Yes
Selectable Charge Rate:  Yes
Shape:  Rectangular
Short Circuit Protection:  Yes
Technology:  Smart
Thermal Protection:  Yes
Voltage Meter:  No
